Aluthermo

A film of pure aluminium, 30 microns thick, treated against oxidation
A layer of bubbles of dry air enclosed in self-extinguishing polyethylene
A film of pure aluminium treated against oxidation
A foam of fire-retarding and waterproofed polyethylene
A film of pure aluminium treated against oxidation
A layer of bubbles of dry air enclosed in self-extinguishing polyethylene
A film of pure aluminium, 30 microns thick, treated against oxidation
Manufacturer:
SKU: aluthermo
Delivery date: 3 - 5 Working Days
£150.00

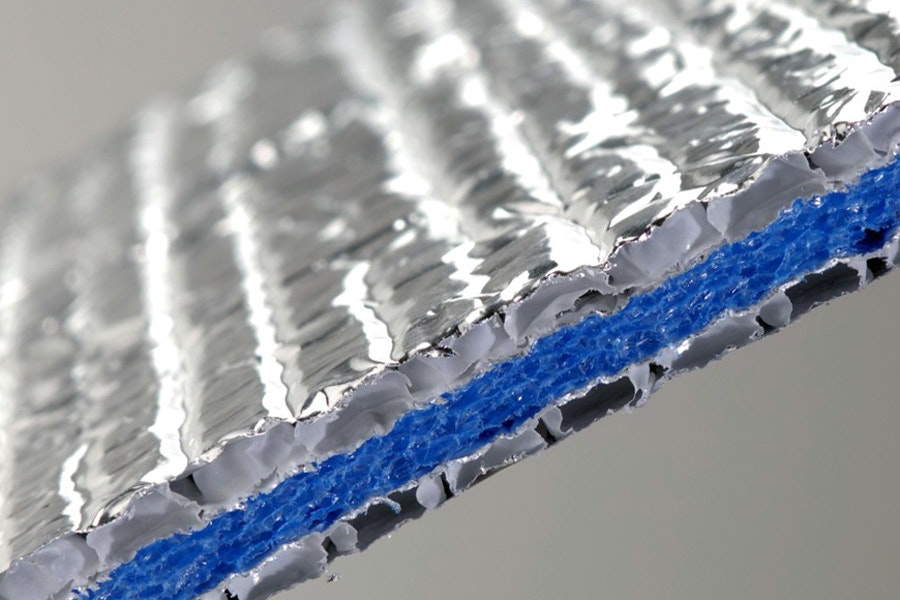

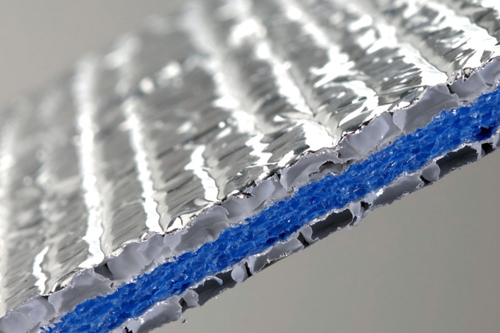

An insulation which is  ultra-thin, multi-reflective with 4 layers of aluminium multi-layer insulation material which is thermally-welded across all its surfaces.

  1. A film of pure aluminium, 30 microns thick, treated against oxidation
  2. A layer of bubbles of dry air enclosed in self-extinguishing polyethylene
  3. A film of pure aluminium treated against oxidation
  4. A foam of fire-retarding and waterproofed polyethylene
  5. A film of pure aluminium treated against oxidation
  6. A layer of bubbles of dry air enclosed in self-extinguishing polyethylene
  7. A film of pure aluminium, 30 microns thick, treated against oxidation

The air trapped in the bubble film and polyethylene foam is dry and stable. Possible condensation is therefore always avoided within the usual range of temperatures for these type of insulations.

Technical Information

  • Multi-reflective and multi-layer
  • Durable pure aluminium
  • Fire protection class BS1D0
  • Roof membrane, insulation material and vapour barrier all in one
  • No shrinkage and rotproof
  • Aluthermo manufacturer 10-year insulation warranty



Thickness

± 10 mm



Operating temperature range

-55°C to +80°C



Fire resistance classification

Bs1d0



Acoustic attenuation

Rw (C ; Ctr) = 35 (-2 ; -7) dB



Impact noise attenuation

ΔLw = 22 dB



Permissible load with 10% deformation

543 kg/m²



Permissible load with 20% deformation

1232 kg/m²



Fill

Fill 2



Bursting resistance

2423 kg/m²



Thickness of the polyethylene film

150 microns



Number of the aluminium films

4



Thickness of the polyethylene foam

3 mm



Thickness of the outer aluminium film

30 microns


>
